Lower Outer Mirror Garnish
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)
- Remove the upper outer mirror garnish. (See UPPER OUTER MIRROR GARNISH .)

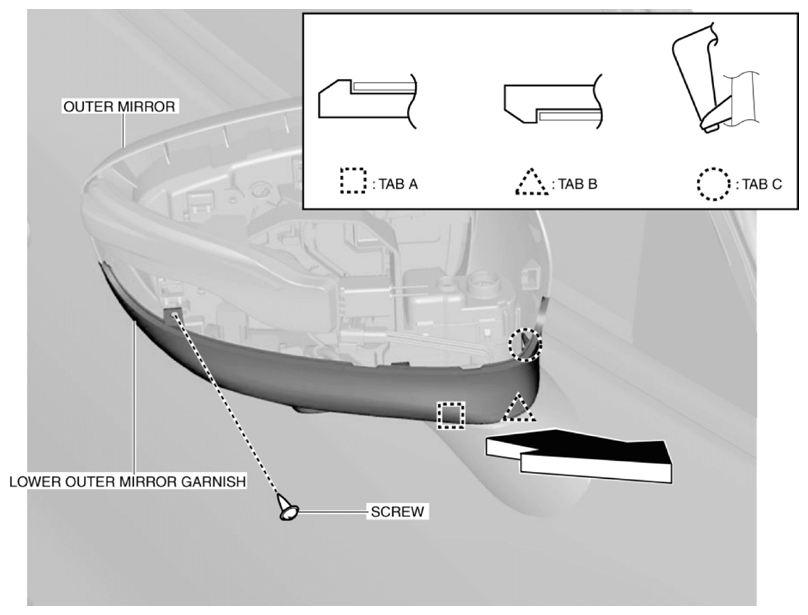

- Remove the screw.
- Using the tape-wrapped flathead screwdriver, detach tab A, B and C shown in the figure from the outer mirror.
- Install in the reverse order of removal.
