Front Door Glass Preparation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Perform the adjusting the top of the front door glass to the position approx. 90 mm {3.5 in} away from the upper part of the front door trim.

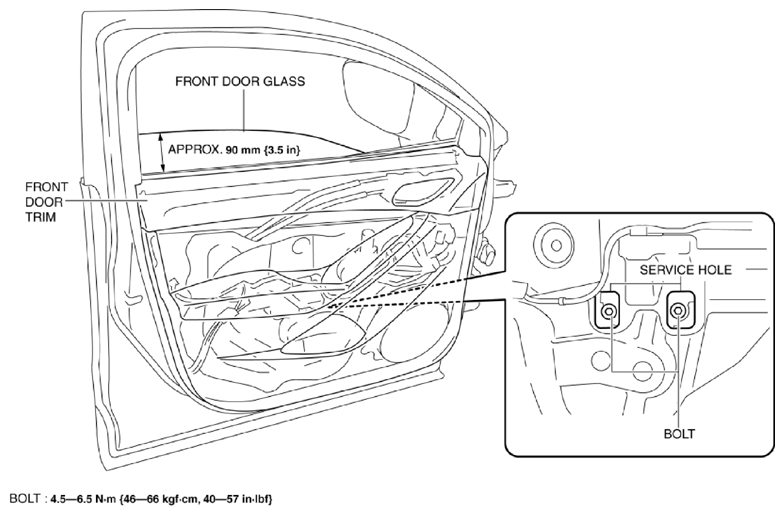

Fig 1: Adjusting Front Door Trim

Courtesy of MAZDA MOTORS CORP.
