Vanity Mirror Illumination Bulb Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.

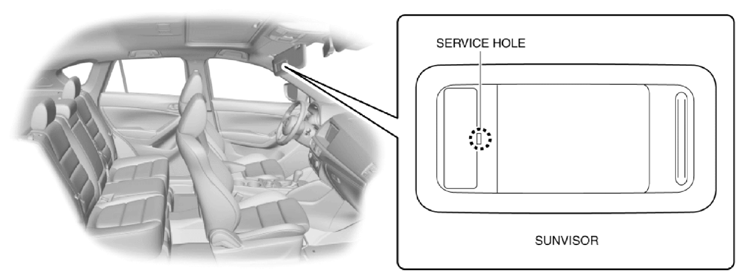

Fig 1: Inserting Tape-Wrapped Flathead Screwdriver Into Service Hole
Courtesy of MAZDA MOTORS CORP.
Move a flathead screwdriver in the direction of the arrow shown in the figure and detach the lens tab and sunvisor.

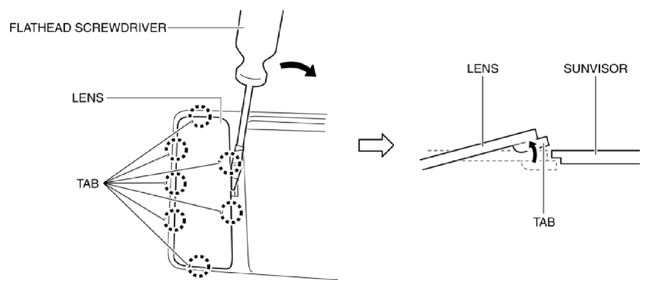

Fig 2: Detaching Lens Tab And Sunvisor
Courtesy of MAZDA MOTORS CORP.
Detach all the lens tab and sunvisor and remove the lens from the sunvisor.

Fig 3: Removing Lens From Sunvisor
Courtesy of MAZDA MOTORS CORP.
Remove the vanity mirror illumination bulb.

Fig 4: Removing Vanity Mirror Illumination Bulb
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
