DTC U2013-13: Cluster Switch Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

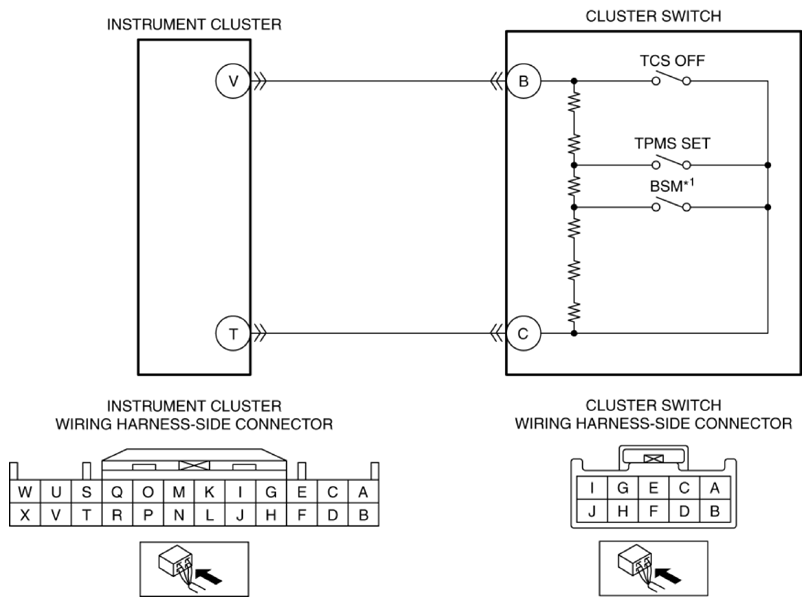

| System malfunction location |
Cluster switch circuit malfunction |
| Detection condition |
- The instrument cluster detects an open circuit in the cluster switch circuit for 5 s or more
with the ignition switched ON (engine off or on).
|
| Fail-safe |
- |
| Possible cause |
- Cluster switch connector or terminal malfunction
- Instrument cluster connector or terminal malfunction
- Open circuit in wiring harness between the following terminals:
- Instrument cluster terminal V and cluster switch terminal B
- Instrument cluster terminal T and cluster switch terminal C
- Cluster switch malfunction
- Instrument cluster malfunction
|
|
|
