Wheel Hub Component Removal/Installation (AWD): Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Performing the following procedures without first removing the rear ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, remove the rear ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor wiring harness will not be pulled by mistake while servicing the vehicle.
- Switch the ignition ON (engine off).
- Release the electric parking brake.
- Switch the ignition off.
- When working on the left side of the vehicle, disconnect the auto leveling sensor link. (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Inspect the rear wheel alignment. (See REAR WHEEL ALIGNMENT

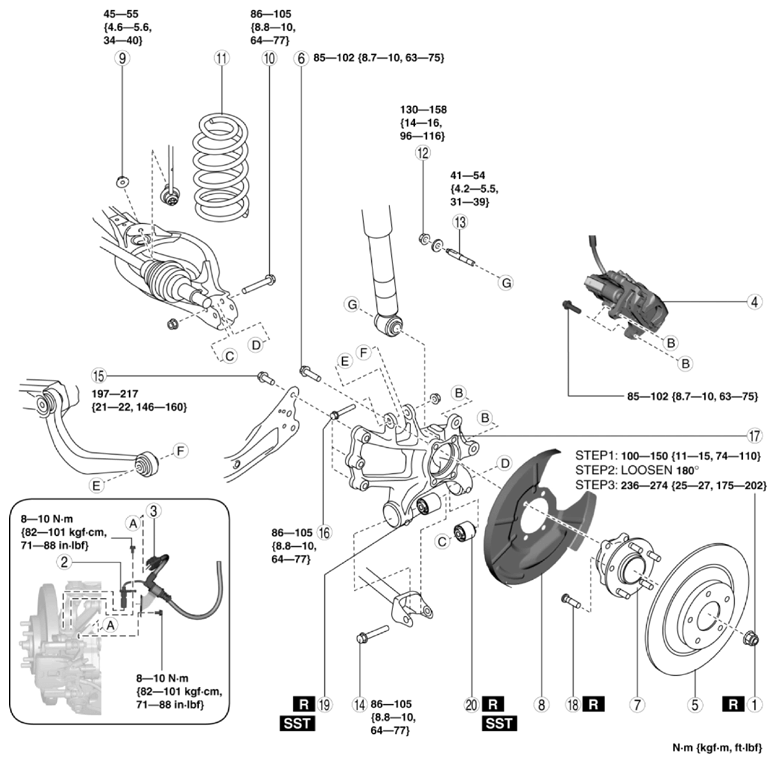

.)COMPONENT DESCRIPTION
1 Locknut
(See Locknut Installation Note .)2 ABS wheel-speed sensor 3 Electric parking brake motor gear unit connector 4 Brake caliper component 5 Disc plate 6 Bolt (wheel hub)
(See WHEEL HUB COMPONENT REMOVAL/INSTALLATION (2WD) .)7 Wheel hub 8 Dust cover 9 Rear stabilizer control link lower side nut 10 Rear lower arm outer bolt
(See WHEEL HUB COMPONENT REMOVAL/INSTALLATION (2WD) .)11 Rear coil spring
(See REAR COIL SPRING REMOVAL/INSTALLATION .)12 Rear shock absorber lower nut 13 Stud bolt 14 Rear lateral link outer bolt
(See REAR LATERAL LINK REMOVAL/INSTALLATION .)15 Rear trailing link installation bolt
(See REAR LATERAL LINK REMOVAL/INSTALLATION .)16 Bolt (rear upper arm outer side) 17 Hub support 18 Wheel hub bolt
(See WHEEL HUB COMPONENT REMOVAL/INSTALLATION (2WD) .)19 Hub support bushing (front)
(See WHEEL HUB COMPONENT REMOVAL/INSTALLATION (2WD) .)20 Hub support bushing (rear)
(See WHEEL HUB COMPONENT REMOVAL/INSTALLATION (2WD) .)
