Ball Joint Assembly Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

When assembling the ball joint, use a clean rag to protect the link and squeeze using a pair of protective tape-wrapped pliers.

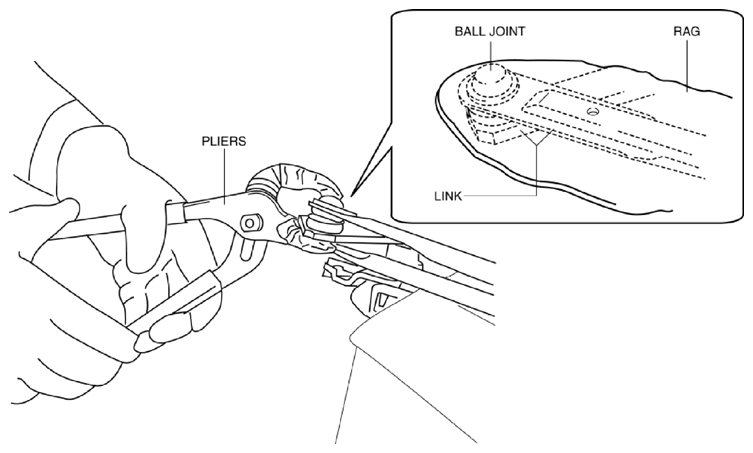

Fig 1: Assembling Ball Joint

Courtesy of MAZDA MOTORS CORP.
