Windshield Wiper Blade

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If the windshield wiper arm end is placed directly on the windshield after removing the windshield wiper blade, it could scratch the windshield. If the windshield wiper arm end is placed on the windshield, place it on a rag to protect the windshield.
    Fig 1: Identifying Windshield Wiper Arm And Rag
    G10939368Courtesy of MAZDA MOTORS CORP.
  1. Pull the windshield wiper blade tab up in the direction of the arrow (1).

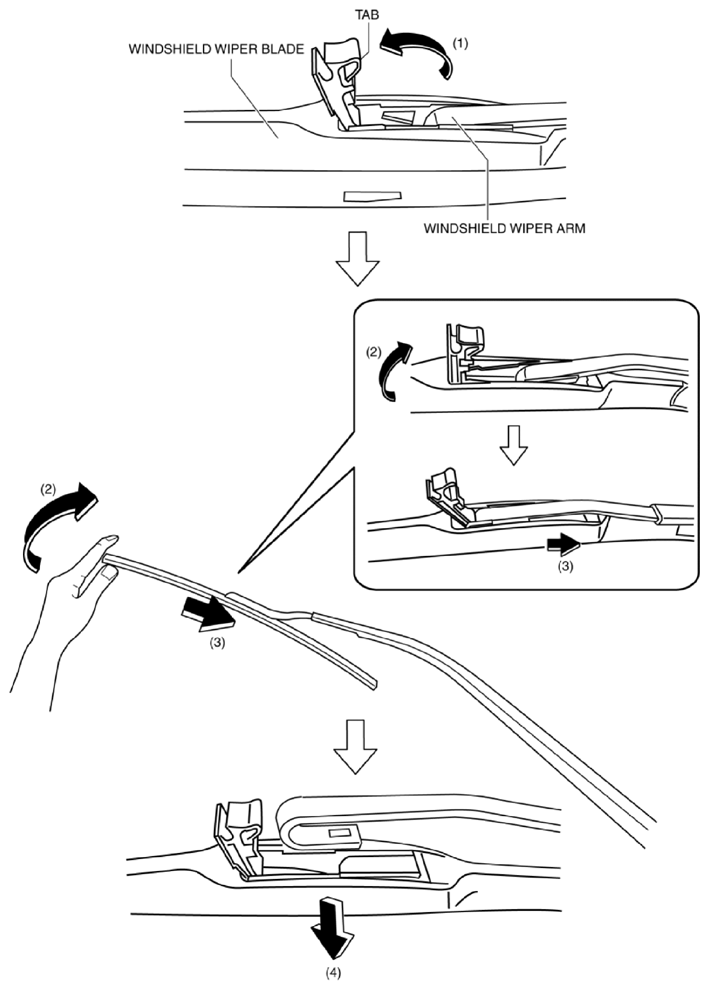

    Fig 2: Pulling Windshield Wiper Blade Tab Up
    G10939369Courtesy of MAZDA MOTORS CORP.
  2. Press the windshield wiper blade end in the direction of the arrow (3) while tilting it in the direction of the arrow (2).
  3. Remove the windshield wiper blade in the direction of the arrow (4) from the windshield wiper arm.
  4. Install in the reverse order of removal.
