Windshield Wiper And Washer Switch Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
Remove the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)
Use a tester to measure and verify that the continuity between the windshield wiper and washer switch terminals is as indicated in the chart.

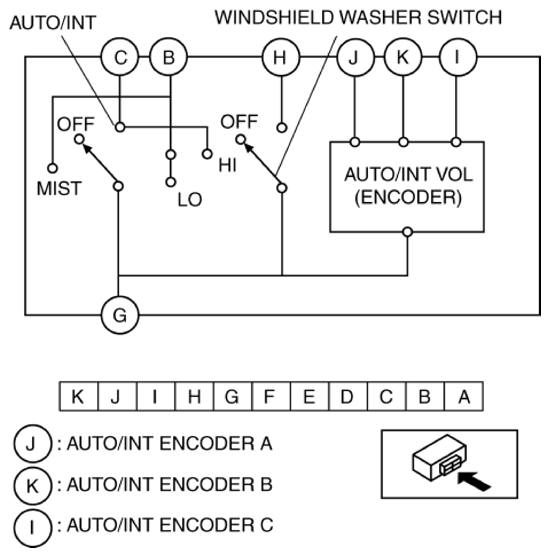

Fig 1: Inspecting Continuity Between Windshield Wiper And Washer Switch Terminals

Courtesy of MAZDA MOTORS CORP.

If the continuity is not as indicated in the chart, replace the windshield wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)

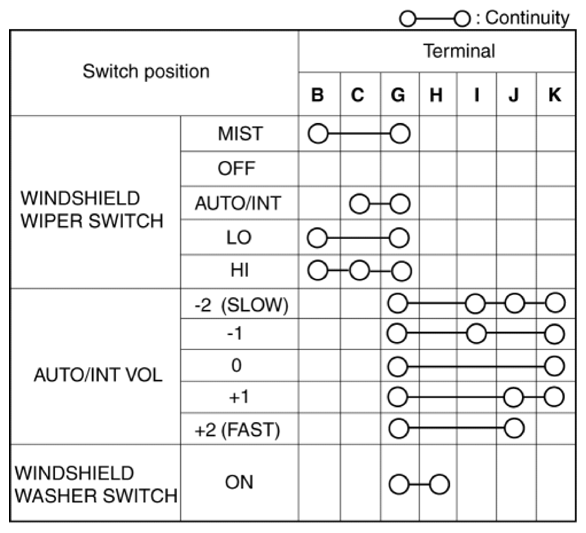

Fig 2: Windshield Wiper And Washer Switch Terminals Continuity Chart

Courtesy of MAZDA MOTORS CORP.
