Rear Wiper Motor Operation Inspection
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

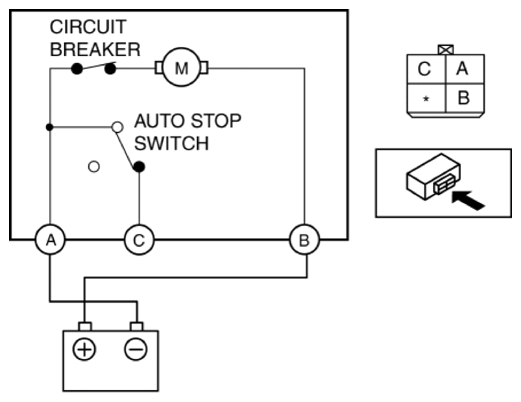

- Apply battery positive voltage to rear wiper motor connector terminal B, and connect terminal A to the ground.
- Verify that the rear wiper motor operates normally.
- If there is any malfunction, replace the rear wiper motor. (See REAR WIPER MOTOR REMOVAL/INSTALLATION .)
