Auto-stop Operation Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Apply battery positive voltage to rear wiper motor connector terminal B, and connect terminals A and C to the ground.

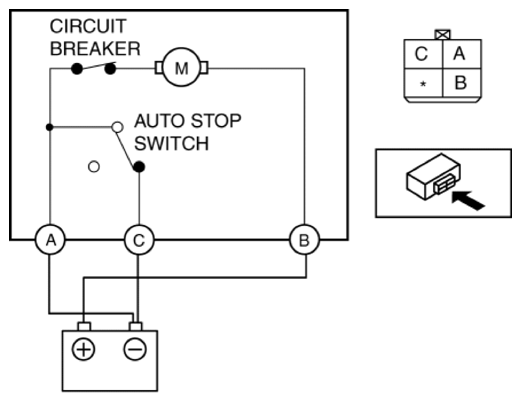

Fig 1: Applying Battery Positive Voltage To Rear Wiper Motor Connector Terminal B
Courtesy of MAZDA MOTORS CORP.
Disconnect the ground from rear wiper motor connector terminal A while the rear wiper is operating.
After the windshield wiper motor auto-stop operation, verify that it stops at the park position.

Fig 2: Disconnecting Ground From Rear Wiper Motor Connector Terminal A

Courtesy of MAZDA MOTORS CORP.

If there is any malfunction, replace the rear wiper motor. (See REAR WIPER MOTOR REMOVAL/INSTALLATION .)
