Rear Wiper Blade

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the rear wiper blade in the direction of the arrow (1) shown in the figure to detach the rear wiper blade from the rear wiper arm.

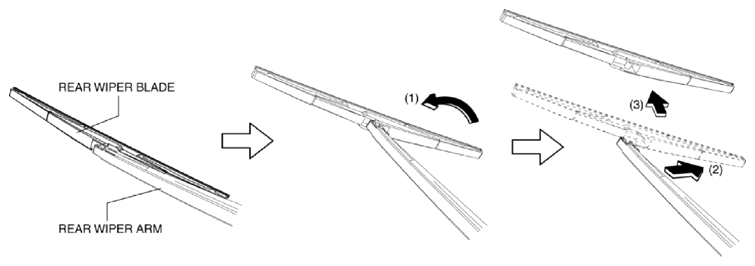

    Fig 1: Moving Rear Wiper Blade
    G10939410Courtesy of MAZDA MOTORS CORP.
  2. Move the rear wiper blade in the direction of the arrow (2) and remove it from the rear wiper arm in the direction of the arrow (3).
  3. Install in the reverse order of removal.
