Rear Wiper Arm

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

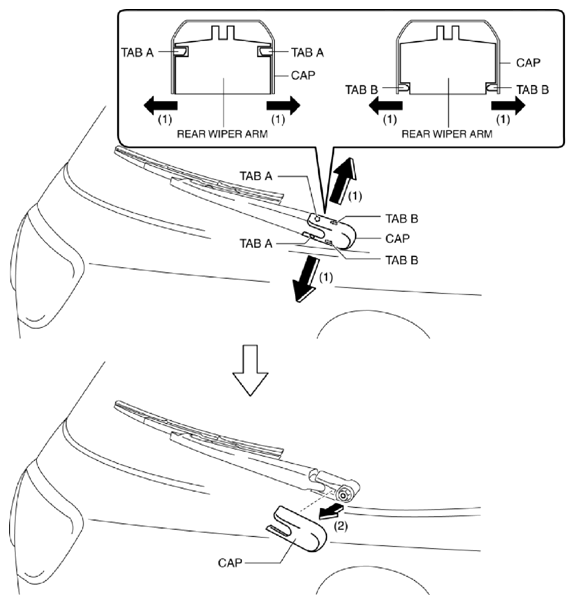

Pull the cap in the direction of the arrows (1) shown in the figure and remove it in the direction of the arrow (2) with tabs A, B released.

Fig 1: Pulling Rear Wiper Arm Cap
Courtesy of MAZDA MOTORS CORP.

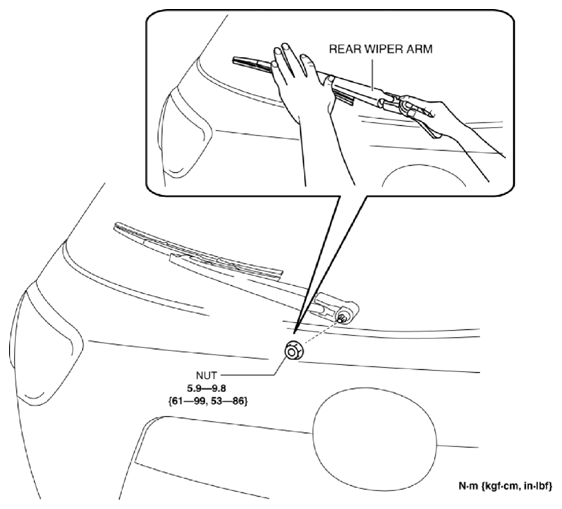

Remove the nut with the rear wiper arm and blade pressed.

Fig 2: Removing Nut With Rear Wiper Arm And Blade
Courtesy of MAZDA MOTORS CORP.

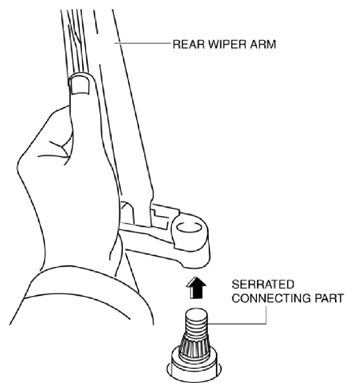

Raise the rear wiper arm and detach it from the serrated connecting part in the direction of the arrow shown in the figure.

Fig 3: Raising Rear Wiper Arm From Serrated Connecting Part
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal. (See REAR WIPER ARM INSTALLATION NOTE .)
Adjust the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE ADJUSTMENT .)
