Rear Wiper And Washer Switch Inspection
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
- Remove the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)

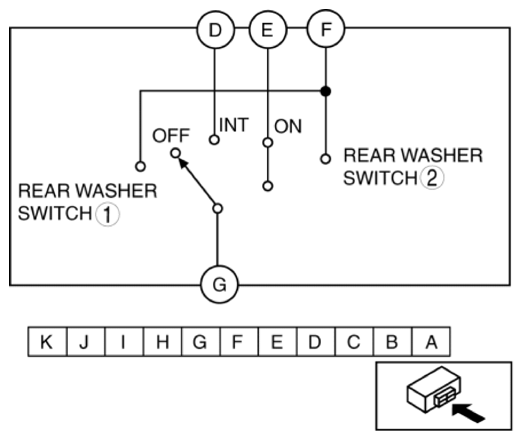

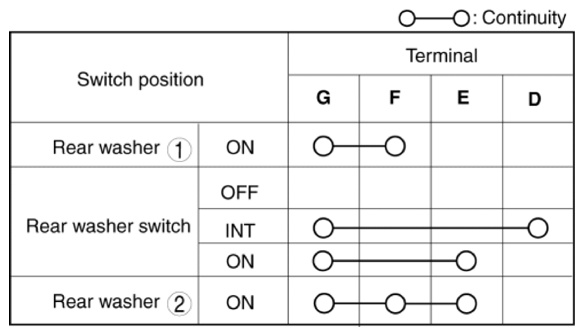

- Use a tester to measure and verify that the continuity between the rear wiper and washer switch terminals is as indicated in the
chart.
Courtesy of MAZDA MOTORS CORP.
- If the continuity is not as indicated in the chart, replace the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)
