Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)

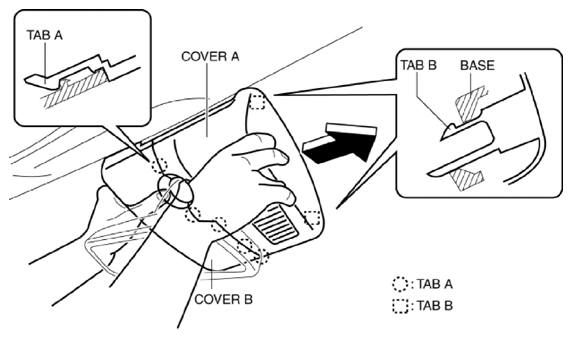

Pull cover A in the direction of the arrow shown in the figure and detach tab A of cover A and cover B.

Fig 1: Pulling Cover A
Courtesy of MAZDA MOTORS CORP.
Pull cover A in the direction of the arrow shown in the figure, detach tab B of cover A and the base, and remove cover A from the base.

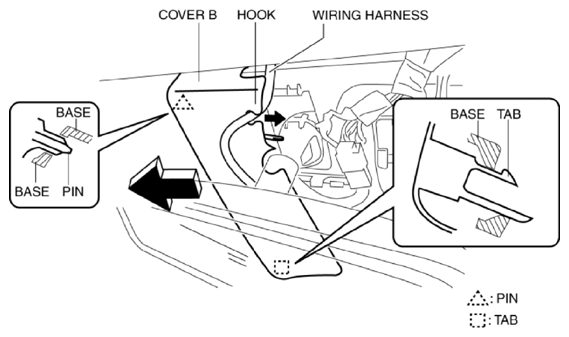

Remove the wiring harness from the hook.

Fig 2: Removing Wiring Harness From Hook
Courtesy of MAZDA MOTORS CORP.
Pull cover B in the direction of the arrow shown in the figure, detach the pin and tab for cover B and the base, and remove cover B from the base.

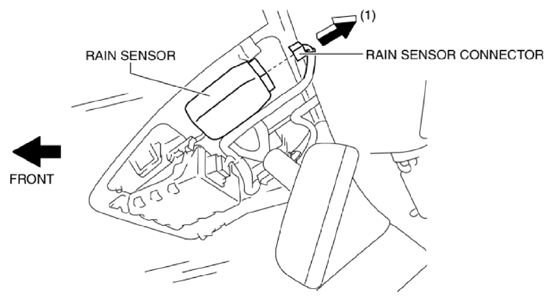

Disconnect the rain sensor connector in the direction of the arrow (1).

Fig 3: Disconnecting Rain Sensor Connector
Courtesy of MAZDA MOTORS CORP.

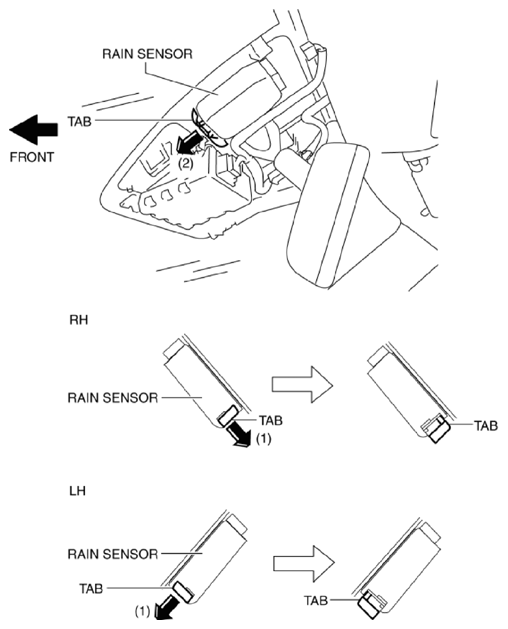

Slide rain sensor tabs B in the direction of the arrow (1) shown in the figure, detach the engagement, and pull tab B in the direction of the arrow (2).

Fig 4: Sliding Rain Sensor Tabs B
Courtesy of MAZDA MOTORS CORP.

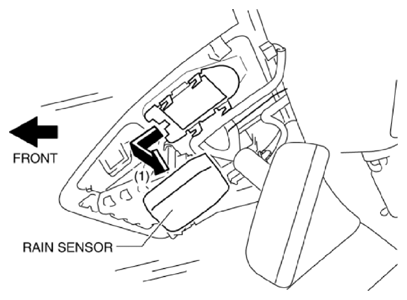

Remove the rain sensor in the direction of the arrow (1) shown in the figure.

Fig 5: Removing Rain Sensor
Courtesy of MAZDA MOTORS CORP.
Peel off the rain sensor protective sheet from the rain sensor.

Fig 6: Identifying Rain Sensor Protective Sheet
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal. (See RAIN SENSOR INSTALLATION NOTE .)
If the rain sensor is replaced, perform the following sensitivity setting procedure for the auto lights.
1. Using the M-MDS, verify the current auto light sensitivity setting. (See CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
2. Change the sensitivity setting to a value other than the sensitivity setting verified in Step 1.
3. Re-set to the auto light sensitivity setting verified in Step 1.

CAUTION:

If the auto light sensitivity setting is not performed after replacing the rain sensor (auto light sensor), the rain sensor will be unable to detect the correct illumination level and the auto light/wiper system will not operate normally. If the rain sensor is replaced, perform the auto light sensitivity setting.
