Plug Hole Plate Removal/Installation: Removal

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull up the front part of the plug hole plate at the same time and remove the rubber from the adapter on the engine side.

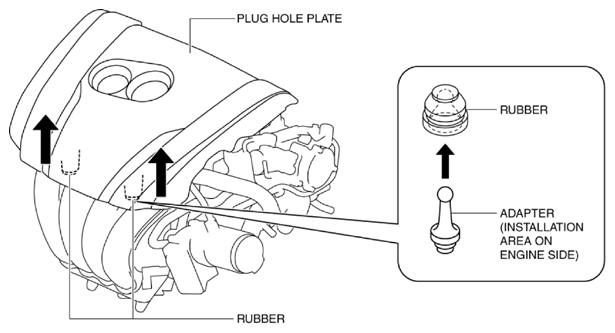

    Fig 1: Pulling Up Front Part Of Plug Hole Plate
    G10915877Courtesy of MAZDA MOTORS CORP.
  2. Pull up the plug hole plate in the order shown in the figure and remove the adapter from the rubber on the engine side.

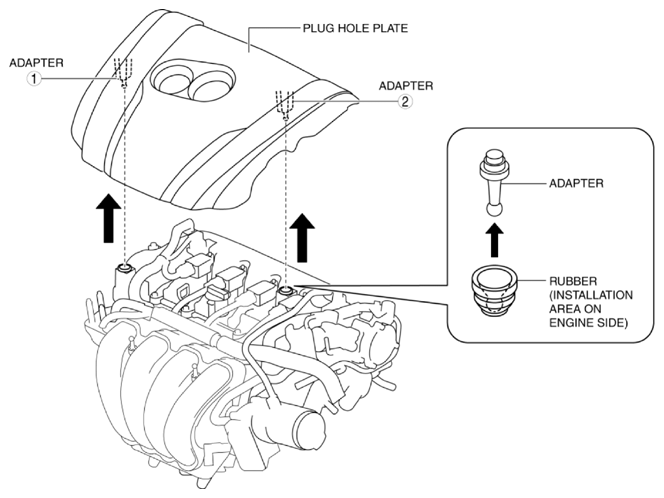

Fig 2: Pulling Up Plug Hole Plate
G10915878Courtesy of MAZDA MOTORS CORP.
