No. 3 Engine Mount, No. 4 Engine Mount Bracket Removal Note
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

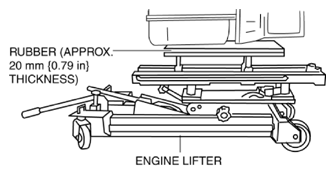

- When supporting the engine and transaxle, insert rubber of appropriate size (approx. 20 mm {0.79 in} thickness) between the engine lifter and the oil pan, transaxle to prevent the deformation of the oil pan and damage of the transaxle.
- Secure the engine and transaxle using a commercially available engine lifter.
- Remove the No. 4 engine mount bracket.
- Remove the No. 3 engine mount.
