No. 4 engine mount rubber installation note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Install the No. 4 engine mount rubber and temporarily tighten the bolts and nut shown in the figure.

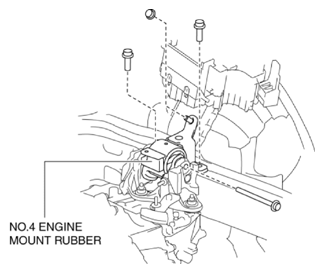

Fig 1: Installing No. 4 Engine Mount Rubber
Courtesy of MAZDA MOTORS CORP.

Tighten the No. 4 engine mount rubber installation bolts and nut in the order shown in the figure.

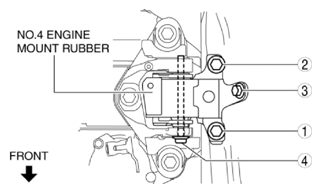

Fig 2: No. 4 Engine Mount Rubber Installation Bolts Tightening Sequence

Courtesy of MAZDA MOTORS CORP.

Tightening torque

Installation position	Tightening torque
1, 2	131-153 N.m {14-15 kgf.m, 97-112 ft.lbf}
3	54-62 N.m {5.6-6.3 kgf.m, 40-45 ft.lbf}
4	81-99 N.m {8.3-10 kgf.m, 60-73 ft.lbf}

Remove the engine lifter or garage jack.
Install in the reverse order of removal.
