No. 4 engine mount bracket removal note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt shown in the figure and set the ground cable aside.
    Fig 1: Removing No. 4 Engine Mount Bracket Bolt
    G10916111Courtesy of MAZDA MOTORS CORP.
  2. Place alignment marks on the locations shown in the figure so that they can be assembled to the same positions as before removal.

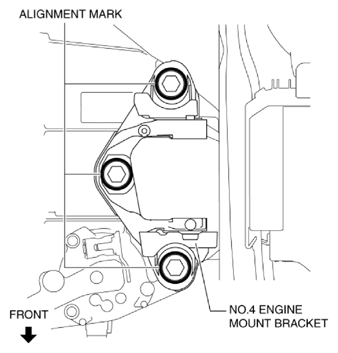

    Fig 2: Placing Alignment Marks On No. 4 Engine Mount Bracket
    G10916112Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Paint so that the outline of the nut is framed on the bracket side.
  3. Remove the No. 4 engine mount bracket.
