No. 1 engine mount rubber, bracket plate installation note (AWD)

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the No. 1 engine mount rubber to the front crossmember.
  2. Tighten the front crossmember installation bolts. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
  3. Remove the jack.
  4. Tighten the No. 1 engine mount rubber installation bolts.

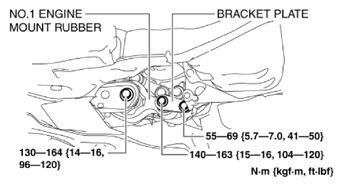

    Fig 1: Identifying No. 1 Engine Mount Rubber Installation Bolts With Torque Specification
    G10916098Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
