No. 1 engine mount rubber removal note (AWD)

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the joint bolt (steering gear side) and disconnect the steering shaft from the steering gear and linkage. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
Disconnect the front crossmember extension.

Fig 1: Disconnecting Front Crossmember Extension
Courtesy of MAZDA MOTORS CORP.

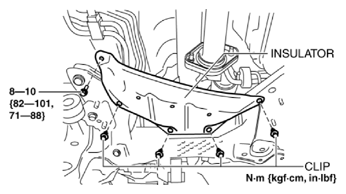

Remove the insulator shown in the figure.

Fig 2: Removing Insulator
Courtesy of MAZDA MOTORS CORP.
Disconnect the hanger rubber from the front crossmember and set it aside.

Fig 3: Disconnecting Hanger Rubber From Front Crossmember
Courtesy of MAZDA MOTORS CORP.
Disconnect the front stabilizer link (front stabilizer side). (See FRONT STABILIZER REMOVAL/INSTALLATION .)

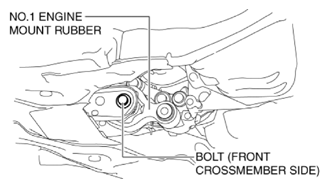

Remove the No. 1 engine mount rubber installation bolt (front crossmember side).

Fig 4: Removing No. 1 Engine Mount Rubber Installation Bolt (Front Crossmember Side)
Courtesy of MAZDA MOTORS CORP.

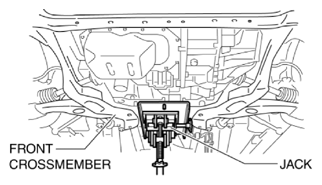

Support the front crossmember component using a jack.

Fig 5: Supporting Front Crossmember Component Using Jack
Courtesy of MAZDA MOTORS CORP.

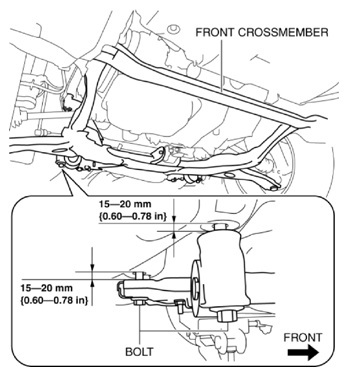

Loosen the front crossmember installation bolts (8) and lower the front crossmember component to 15-20 mm {0.60-0.78 in}.

Fig 6: Loosening Front Crossmember Installation Bolts
Courtesy of MAZDA MOTORS CORP.
NOTE:
- To remove the No. 1 engine mount rubber, lower the front crossmember component to make clearance between the component and transfer.
Remove the No. 1 engine mount rubber.

Fig 7: Removing No. 1 Engine Mount Rubber

Courtesy of MAZDA MOTORS CORP.
