No. 1 engine mount bracket installation note (AWD)
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

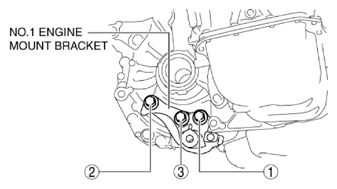

- Install the No. 1 engine mount bracket and tighten the bolts in the order shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Tightening torque
- 114-132 N.m {12-13 kgf.m, 85-97 ft.lbf}
- Install in the reverse order of removal.
