Oil Cooler Water Pipe Component Installation Note (SKYACTIV-G 2.0)

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Install the oil cooler water pipe component in the order shown in the figure.

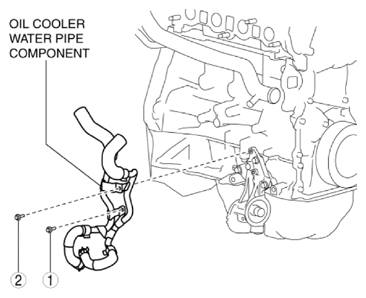

Fig 1: Installing Oil Cooler Water Pipe Component
Courtesy of MAZDA MOTORS CORP.

Tightening torque
- 8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
