Hydraulic Variable Valve Timing Actuator Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

When replacing the hydraulic variable valve timing actuator, place a mark at the same position as the one placed before removal.

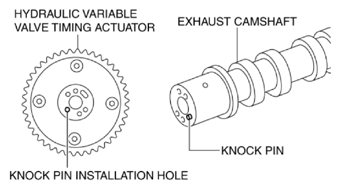

Align the knock pin on the end of the exhaust camshaft with the knock pin installation hole on the actuator side, and temporarily assemble the bolt.

Fig 1: Aligning Knock Pin On End Of Exhaust Camshaft On Actuator Side
Courtesy of MAZDA MOTORS CORP.
Lock the exhaust camshaft against rotation by holding the exhaust camshaft with a vise and securing the cast hexagon with a wrench.

Fig 2: Holding Exhaust Camshaft With Vise
Courtesy of MAZDA MOTORS CORP.
Tighten the hydraulic variable valve timing actuator installation bolt.
Tightening torque
- 75-85 N.m {7.7-8.6 kgf.m, 56-62 ft.lbf}
