Generator Drive Belt
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- The generator drive belt deflection/tension inspection is not necessary with the adoption of the drive belt auto tensioner.
- Visually inspect or feel that there is no wear, damage, or cracking on the inside and sides of the entire belt.
- Even if there is a little wear, damage, or cracking, replace the generator drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)

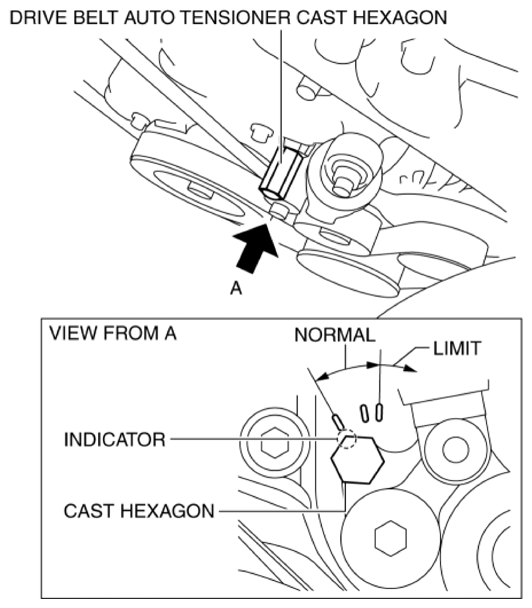

- Verify that the indicator part of the cast hexagon on the drive belt auto tensioner is within the normal range.
- If it exceeds the limit, replace the generator drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
