Drive Belt Auto TENSIONER Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.
CAUTION:
  • If the rubber part of the drive belt auto tensioner is damaged by a screwdriver or other tool, oil in the hydraulic pressure unit could leak and the tensioner may not operate normally. Be careful not to damage the rubber part of the drive belt auto tensioner.

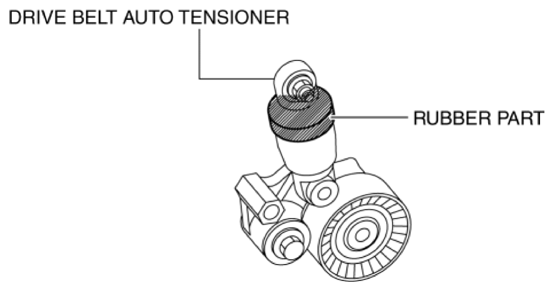

Fig 1: Identifying Drive Belt Auto Tensioner And Rubber Part
G10915887Courtesy of MAZDA MOTORS CORP.
  1. Remove the generator drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
    CAUTION:
    • To prevent damage to the drive belt auto tensioner, do not apply excessive torque after the tensioner moves full-stroke.
  2. Insert the wrench onto the cast hexagon on the drive belt auto tensioner, slowly turn it in the direction of the arrow shown in the figure, and fully depress.

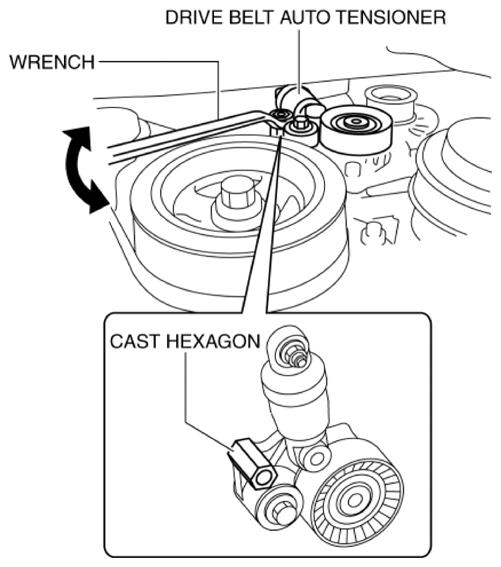

    Fig 2: Inserting Wrench Onto Cast Hexagon On Drive Belt Auto Tensioner
    G10915888Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The drive belt auto tensioner is operated in the direction of the arrow by turning the wrench.

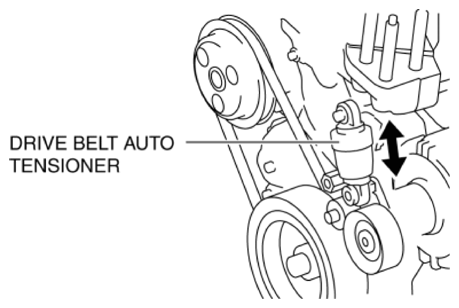

    Fig 3: Moving Drive Belt Auto Tensioner
    G10915889Courtesy of MAZDA MOTORS CORP.
  3. Verify that the drive belt auto tensioner moves smoothly in the operational direction.
    • If it does not move smoothly, air infiltration into the inner hydraulic pressure unit can be considered. Move the drive belt auto tensioner up and down at full stroke three times to bleed the air.

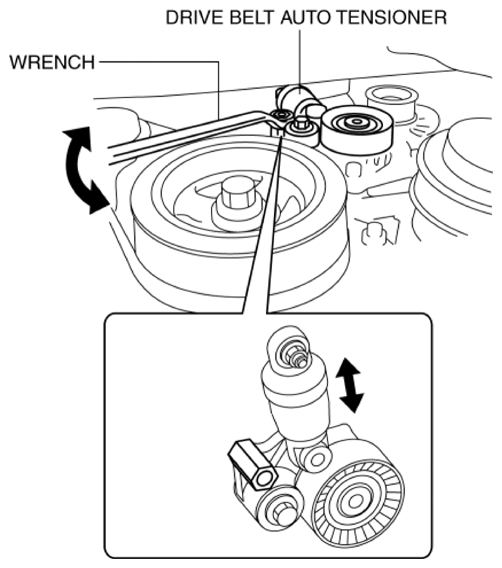

      Fig 4: Moving Drive Belt Auto Tensioner Up And Down
      G10915890Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • By moving the drive belt auto tensioner up and down full-stroke three times, the piston inside the tensioner moves to bleed the air.
  4. Turn the drive belt auto tensioner pulley by hand and verify that it rotates smoothly.

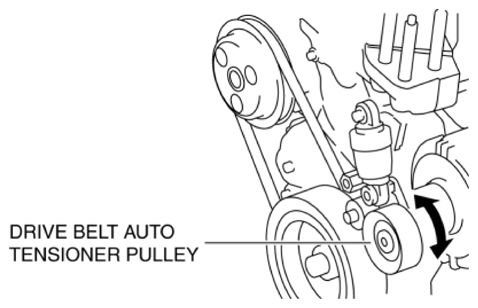

    Fig 5: Turning Drive Belt Auto Tensioner Pulley
    G10915891Courtesy of MAZDA MOTORS CORP.
  5. Install the generator drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
