Shift Control Module Removal/Installation: Removal

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Shift the shift lever to the neutral position.
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the air cleaner and air hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION .)
Disconnect the control cable from the manual transaxle.
1. Pull the lock pin in the direction of the arrow shown in the figure and release the control cable end lock.

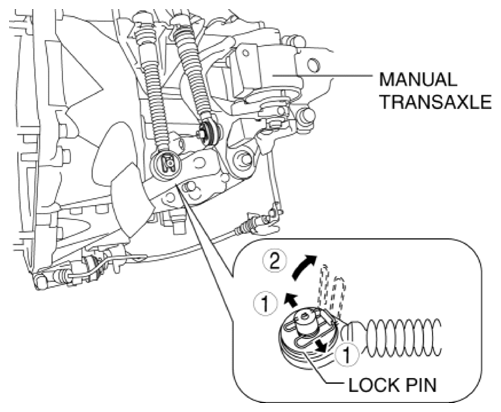

  Fig 1: Releasing Control Cable End Lock
  Courtesy of MAZDA MOTORS CORP.
2. Press the tabs on the control cable and disconnect the control cable from the bracket on the manual transaxle.

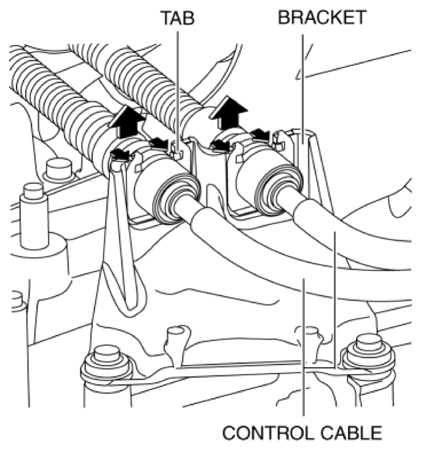

Fig 2: Disconnecting Control Cable From Bracket On Manual Transaxle
Courtesy of MAZDA MOTORS CORP.

Remove the neutral switch in the order shown in the figure

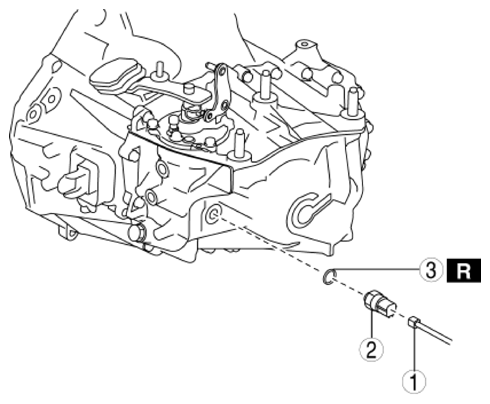

Fig 3: Identifying Neutral Switch And Gasket

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Connector
2	Neutral switch
3	Gasket

Remove the detent ball pin in the order shown in the figure

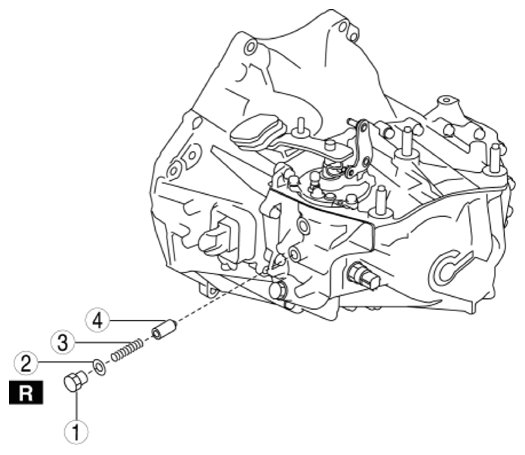

Fig 4: Removing Detent Ball Pin

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Plug
2	Gasket
3	Spring
4	Detent ball pin

Remove the back-up light switch in the order shown in the figure

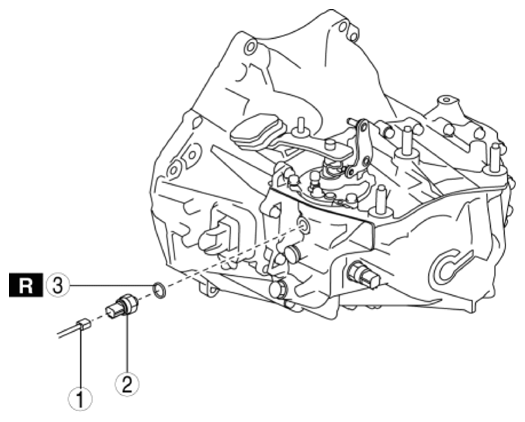

Fig 5: Removing Back-Up Light Switch

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Connector
2	Back-up light switch
3	Gasket

Remove the shift control module in the order shown in the figure

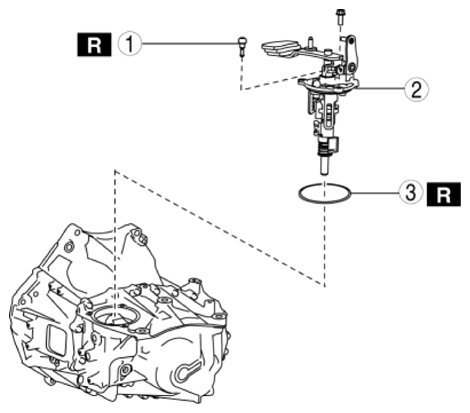

Fig 6: Removing Shift Control Module

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Breather
2	Shift control module
3	O-ring
