Shift Control Module Removal/Installation: Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the shift control module is in the neutral position.
NOTE:
- If the shift control module is in the neutral position, the shift lever with the weight can be moved up and down to a large extent.

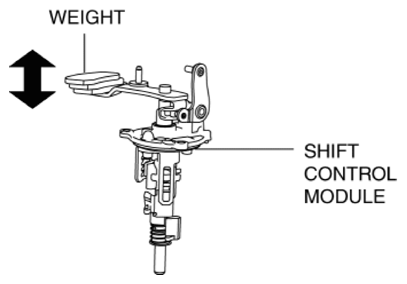

Fig 1: Positioning Shift Control Module In Neutral Position
Courtesy of MAZDA MOTORS CORP.

Install the shift control module in the order shown in the figure

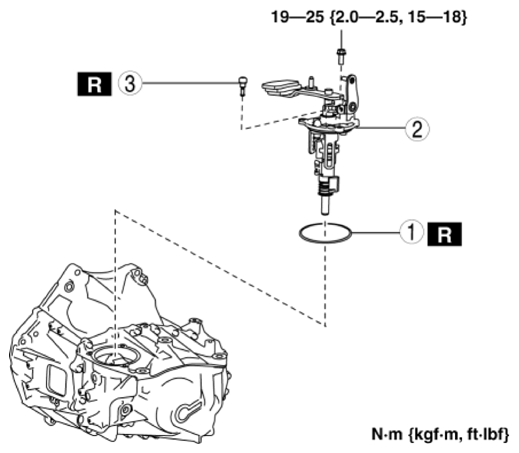

Fig 2: Identifying Shift Control Module Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	O-ring
2	Shift control module
3	Breather

Install the back-up light switch in the order shown in the figure

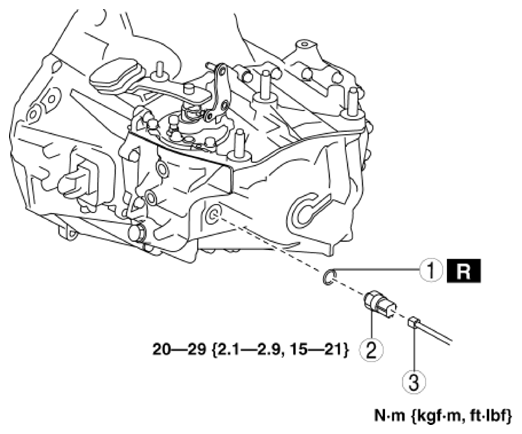

Fig 3: Identifying Back-Up Light Switch Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Gasket
2	Back-up light switch
3	Connector

Install the detent ball pin in the order shown in the figure

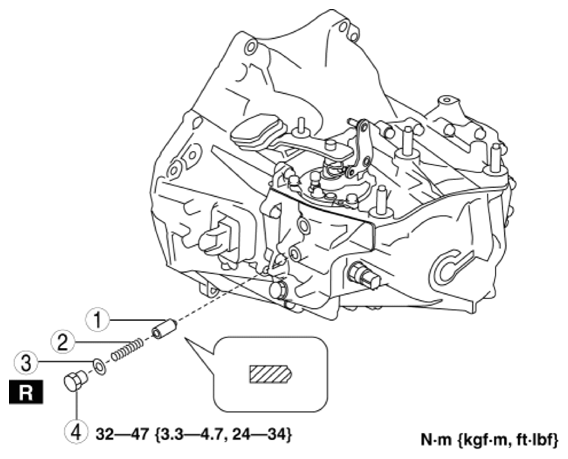

Fig 4: Identifying Detent Ball Pin Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Detent ball pin
2	Spring
3	Gasket
4	Plug

Install the neutral switch in the order shown in the figure

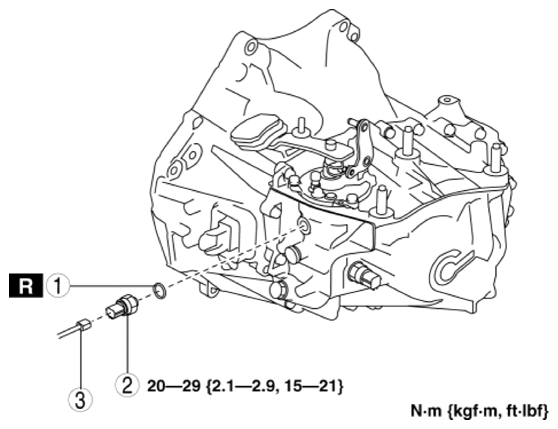

Fig 5: Identifying Neutral Switch Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Gasket
2	Neutral switch
3	Connector

Connect the control cable to the manual transaxle.

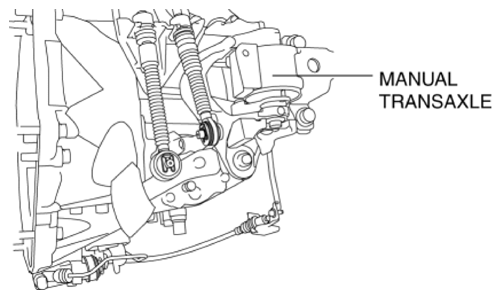

Fig 6: Identifying Manual Transaxle
Courtesy of MAZDA MOTORS CORP.
Make sure that the shift lever can be shifted smoothly.
Install the battery tray and battery. (See BATTERY REMOVAL/INSTALLATION .)
Install the air cleaner and air hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Install the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
