Neutral Switch Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the air cleaner component (air cleaner, air hose). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)

Remove in the order indicated in the table.

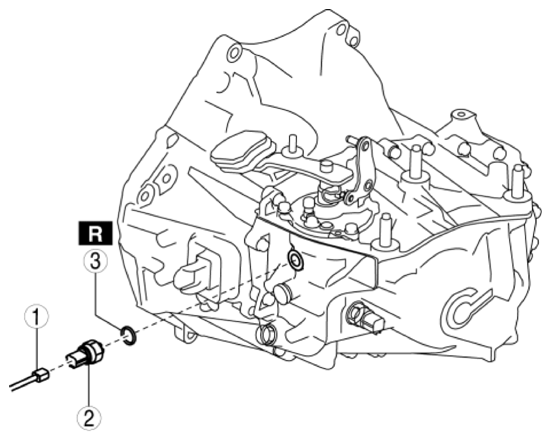

Fig 1: Identifying Neutral Switch Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Connector
2	Neutral switch
3	Gasket

Install in the order indicated in the table.

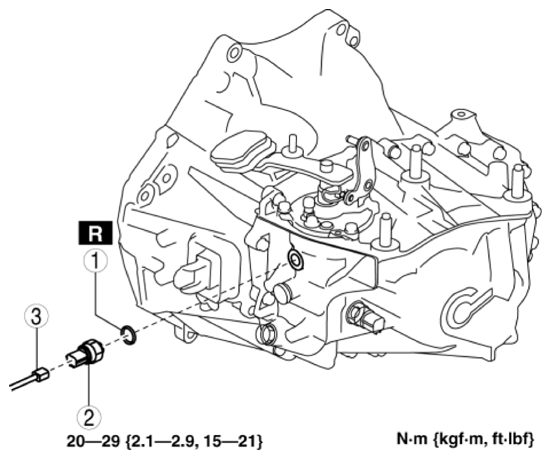

Fig 2: Identifying Neutral Switch Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Gasket
2	Neutral switch
3	Connector

Install the air cleaner component (air cleaner, air hose). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
