Transaxle mounting bolt removal note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Remove the manual transaxle carefully, holding it steady. If the manual transaxle falls it could be damaged or cause injury.

Adjust the SST and lean the engine toward the manual transaxle.

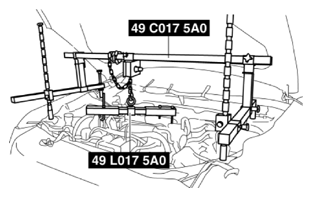

Fig 1: Adjusting SST (49 C017 5A0)
Courtesy of MAZDA MOTORS CORP.
Support the manual transaxle on a jack.

Fig 2: Supporting Manual Transaxle On Jack
Courtesy of MAZDA MOTORS CORP.
Remove the transaxle mounting bolts (lower side).

Fig 3: Locating Transaxle Mounting Bolts (Lower Side)
Courtesy of MAZDA MOTORS CORP.
Remove the manual transaxle.
