Tie-Rod End Replacement

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the snap pin.

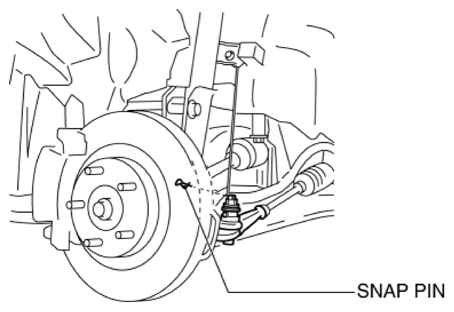

Fig 1: Identifying Snap Pin
Courtesy of MAZDA MOTORS CORP.
Loosen the tie-rod end locknut.
Detach the tie-rod end from the steering knuckle using the SST .

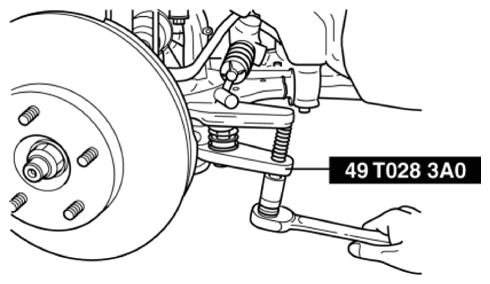

Fig 2: Detaching Tie-Rod End From Steering Knuckle Using SST
Courtesy of MAZDA MOTORS CORP.
Remove the tie-rod end locknut.
Place alignment marks as shown in the figure for proper installation.

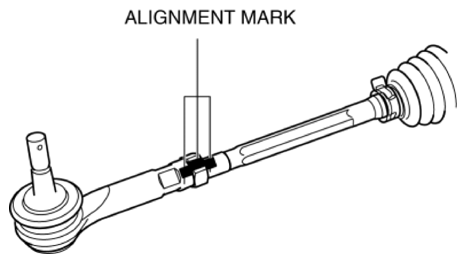

Fig 3: Identifying Alignment Mark On Tie-Rod
Courtesy of MAZDA MOTORS CORP.
Remove the tie-rod end.

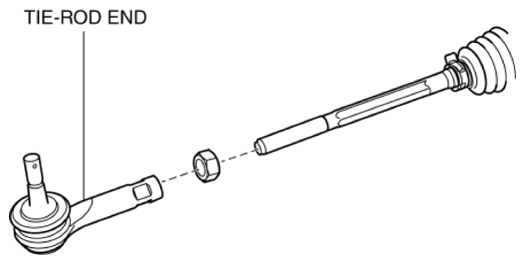

Fig 4: Identifying Tie-Rod End
Courtesy of MAZDA MOTORS CORP.
Align the alignment marks made before removing the tie-rod end, and then install a new tie-rod end to the tie rod.

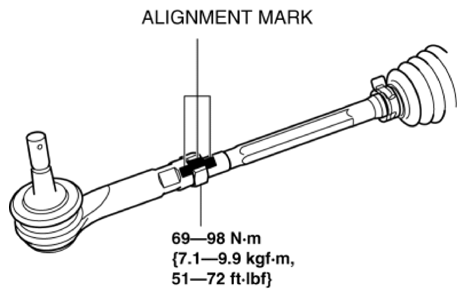

Fig 5: Identifying Alignment Mark On Tie-Rod
Courtesy of MAZDA MOTORS CORP.
- If there are no alignment marks, go to the following procedure.
Adjust dimension A shown in the figure to the standard, and assemble.

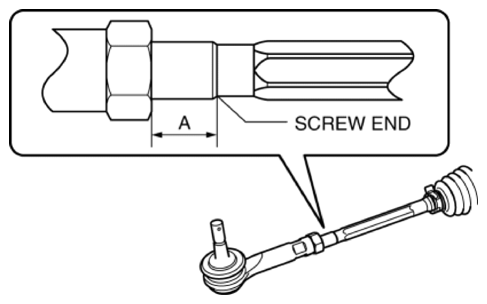

Fig 6: Adjusting Tie-Rod End Nut Dimension
Courtesy of MAZDA MOTORS CORP.

Standard Dimension A
- 10.1-23.1 mm {0.398-0.909 in}
Install the tie-rod end to the steering knuckle.

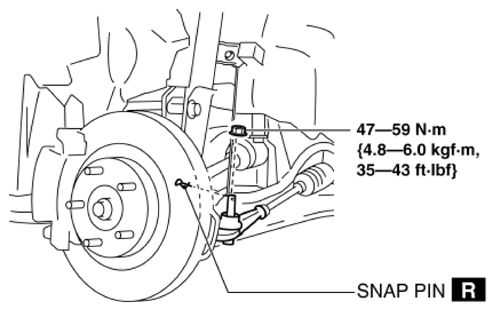

Fig 7: Identifying Tie-Rod End Pin And Nut With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install a new snap pin.
After installation, inspect the front wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT .)
