Spacer, Rubber and EPS CM Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Install the spacer and rubber to the steering column.
Install the EPS CM so that the projecting part of the EPS CM (rotor) is engaged with the notch in the rubber.

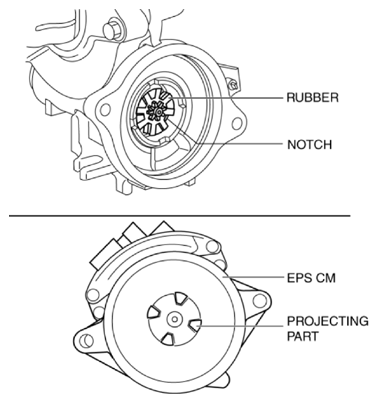

Fig 1: Identifying Notch, Rubber, EPS CM And Projecting Part

Courtesy of MAZDA MOTORS CORP.

NOTE:

If the projecting part of the EPS CM (rotor) is not engaged with the notch in the rubber, adjust the position of the EPS CM projection (rotor).
