EPS CM Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the torque sensor connector (EPS CM side).

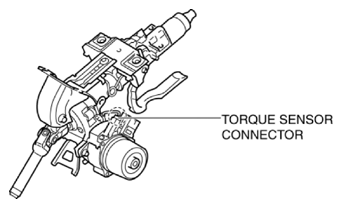

    Fig 1: Identifying Torque Sensor Connector
    G10937396Courtesy of MAZDA MOTORS CORP.
  2. Remove the EPS CM.
