Steering Shaft Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the steering column for excessive play and damage.
Verify that the clearance between the projection on the steering column shown in the figure and the bracket is less than 2.0 mm {0.079 in}.

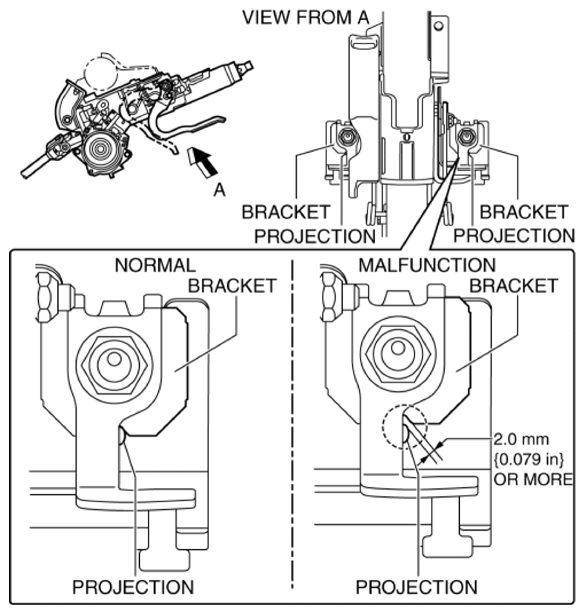

Fig 1: Checking Clearance Between Projection On Steering Column
Courtesy of MAZDA MOTORS CORP.
- If the clearance between the projection and bracket is 2.0 mm {0.079 in} or more, replace the steering column component.
NOTE:
- If the clearance between the projection and bracket is 2.0 mm {0.079 in} or more, the impact absorbing mechanism of the steering column will operate, therefore it is necessary to replace the steering column component.
Inspect the tilt/telescope mechanism operation for the following:

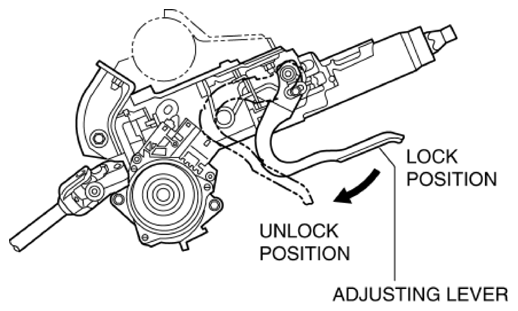

Fig 2: Inspecting Tilt/Telescope Mechanism Operation
Courtesy of MAZDA MOTORS CORP.
1. The adjusting lever moves smoothly from the lock to the unlock position.
2. The steering shaft is fixed firmly when the adjusting lever is locked.
  - If there is any malfunction, replace the steering column.
