Tie Rod Disassembly Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lock the steering rack end (pinion gear side) against rotation with a wrench and remove the tie rod using the suitable wrench.

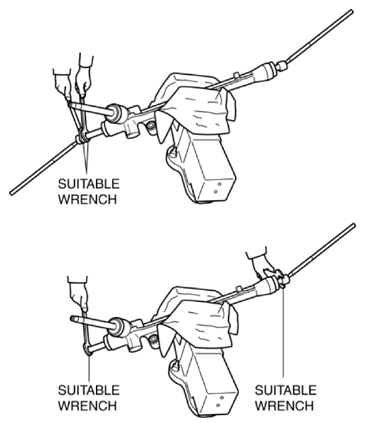

Fig 1: Locking Steering Rack End (Pinion Gear Side)
G10937428Courtesy of MAZDA MOTORS CORP.
