Mounting Rubber Disassembly Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the mounting rubber from the gear housing using the SSTs  and a press.

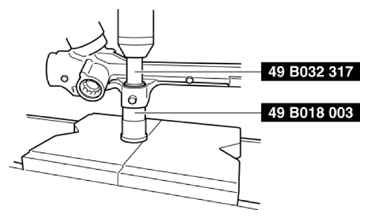

    Fig 1: Removing Mounting Rubber From Gear Housing Using SST
    G10937429Courtesy of MAZDA MOTORS CORP.
