Mounting Rubber Assembly Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Apply soapy water to the rubber part of the mounting rubber.
Press fit the ear portion of the mounting rubber (lower side) using the SSTs until it projects from the gear housing as shown in the figure.

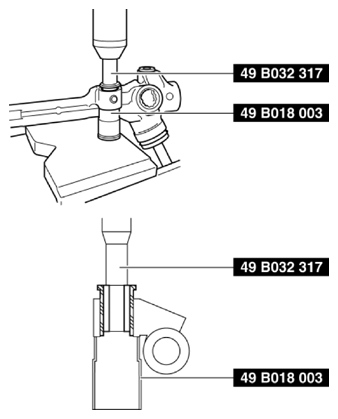

Fig 1: Pressing Fit Ear Portion Of Mounting Rubber (Lower Side) Using SST
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Press fit the ear portion of the mounting rubber (upper side) until it partially enters the gear housing.
Reverse the gear housing, then press fit the mounting rubber using the SSTs and the press until the mounting rubber ear portion (upper side) contacts the gear housing.

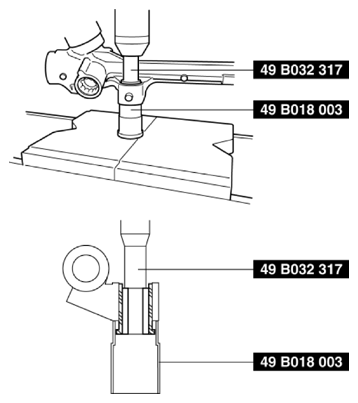

Fig 2: Pressing Fit Mounting Rubber Using SST
Courtesy of MAZDA MOTORS CORP.
Verify that both mounting rubber ears are correctly assembled with no gaps between them and the gear housing as shown in the figure.

Fig 3: Identifying Mounting Rubber And Gear Housing
Courtesy of MAZDA MOTORS CORP.
- If there are gaps, readjust their positions using the SSTs and the press.
