Intermediate Shaft Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place an alignment mark across the break between the steering column and the yoke for the intermediate shaft as shown in the figure.

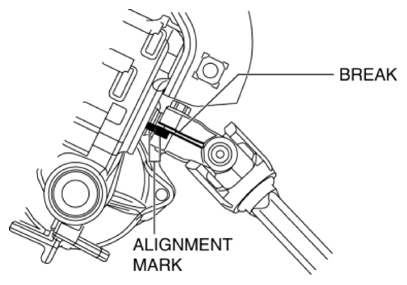

    Fig 1: Identifying Alignment Mark Across Break Between Steering Column And Yoke
    G10937405Courtesy of MAZDA MOTORS CORP.
  2. Place alignment marks on the steering gear (pinion) and the intermediate shaft as shown in the figure.

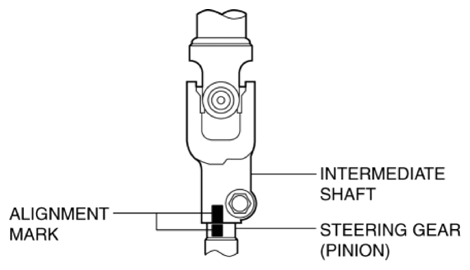

    Fig 2: Identifying Alignment Marks On Steering Gear (Pinion) And Intermediate Shaft
    G10937406Courtesy of MAZDA MOTORS CORP.
  3. Remove joint bolt A, then joint bolt B.

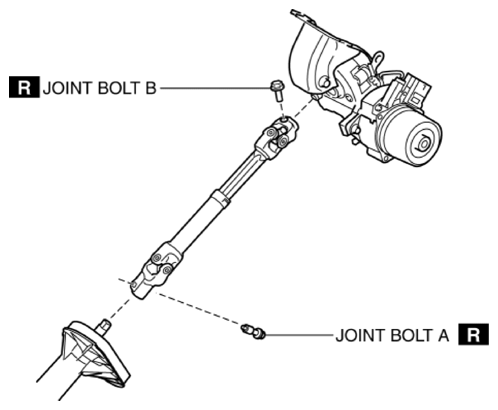

    Fig 3: Identifying Joint Bolt A And B
    G10937407Courtesy of MAZDA MOTORS CORP.
  4. Remove the intermediate shaft.
