Section 24 (Electric Power Steering System (Service Information))
>>
Electric Power Steering (EPS) System Wiring Diagram
Electric Power Steering (EPS) System Wiring Diagram
WARNING:
This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

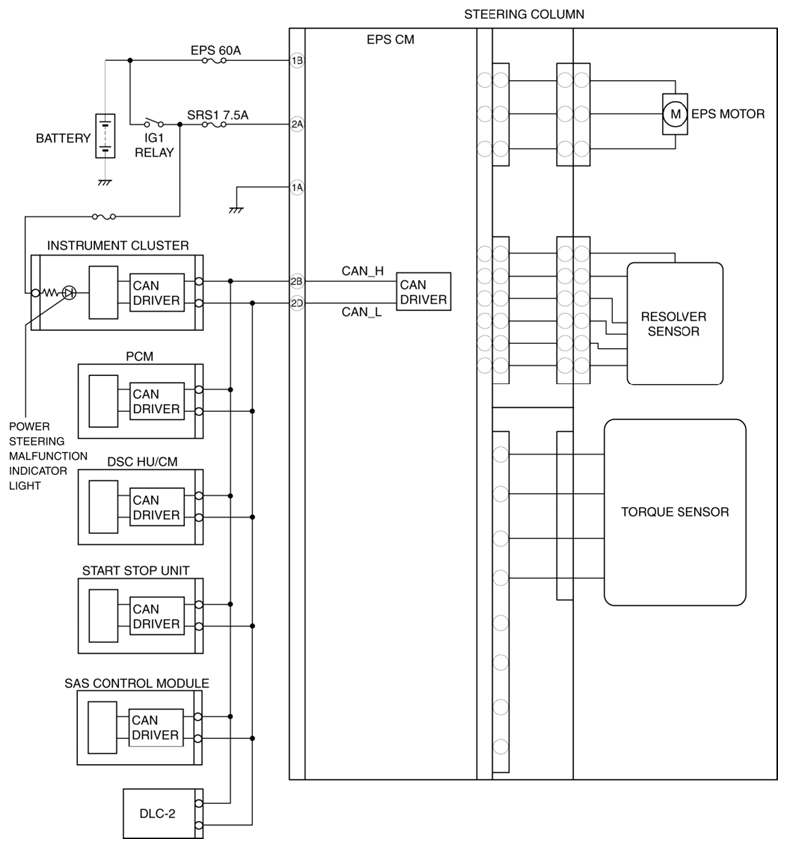

Fig 1: Electric Power Steering System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
