Front Splash Shield No. 2

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove screw B.

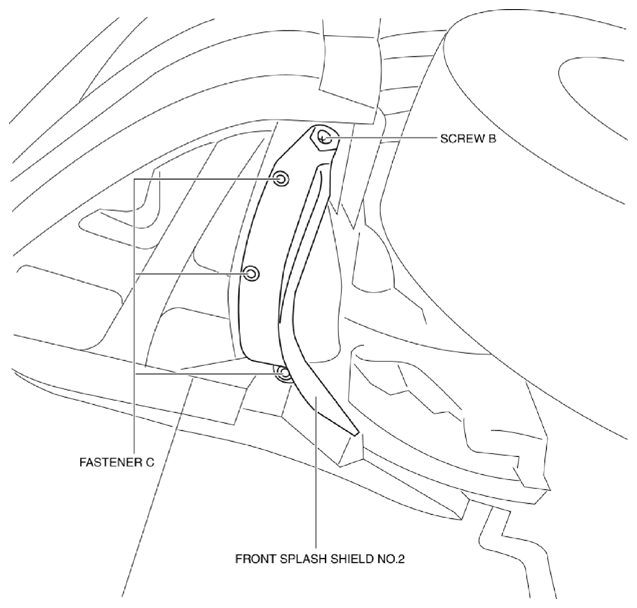

    Fig 1: Identifying Front Splash Shield Fastener And Screw
    G10938963Courtesy of MAZDA MOTORS CORP.
  2. Remove fasteners C.
  3. Remove the front splash shield No. 2.
  4. Install in the reverse order of removal.
