Side Garnish Installation: Rear

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

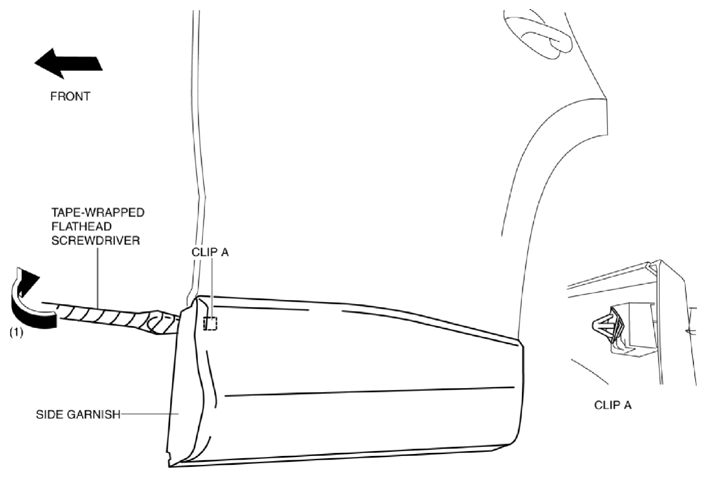

Insert a tape-wrapped flathead screwdriver in the position shown in the figure, move it in the direction of the arrow (1) to remove the clip A.

Fig 1: Removing Rear Side Garnish Clip
Courtesy of MAZDA MOTORS CORP.

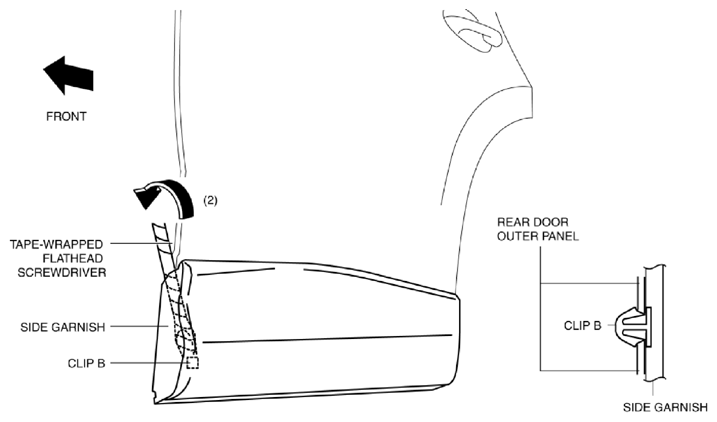

Insert a tape-wrapped flathead screwdriver in the position shown in the figure, move it in the direction of the arrow (2) to remove the clip B.

Fig 2: Removing Side Garnish
Courtesy of MAZDA MOTORS CORP.

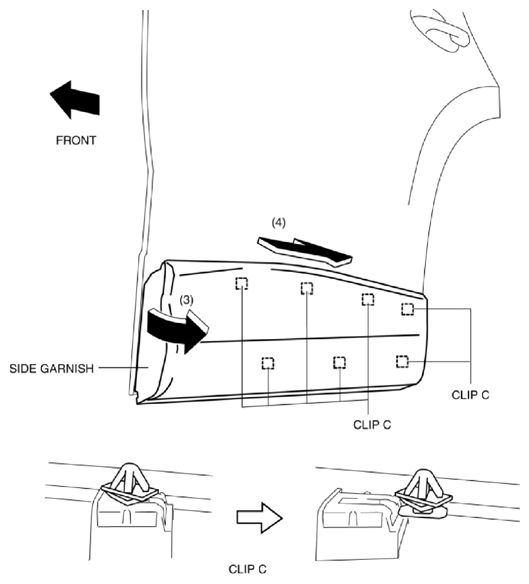

Slide the side garnish in the direction of arrow (4) with it pulled in the direction of arrow (3) shown in the figure and detach clips C from the side garnish.

Fig 3: Sliding Side Garnish
Courtesy of MAZDA MOTORS CORP.
Remove the side garnish.
Detach clips C from the body.
When reusing the side garnish, install clips A, B and C, that wear detached from the body, to the side garnish.
