Side Garnish Installation: Front

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a tape-wrapped flathead screwdriver in the position shown in the figure, move it in the direction of the arrow (1) to remove the clip A.

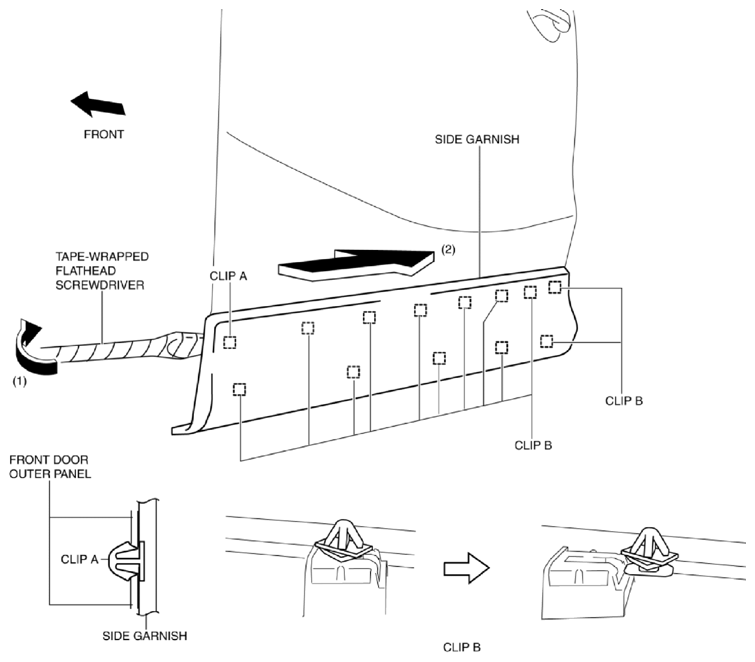

    Fig 1: Removing Front Side Garnish Clip
    G10938949Courtesy of MAZDA MOTORS CORP.
  2. Slide the side garnish in the direction of the arrow (2) shown in the figure and remove clips B from side garnish.
  3. Remove the side garnish.
  4. Detach clips B from the body.
  5. When reusing the side garnish, install clips A and B, that wear detached from the body, to the side garnish.
