Rear Door Garnish Removal/Installation: Front
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

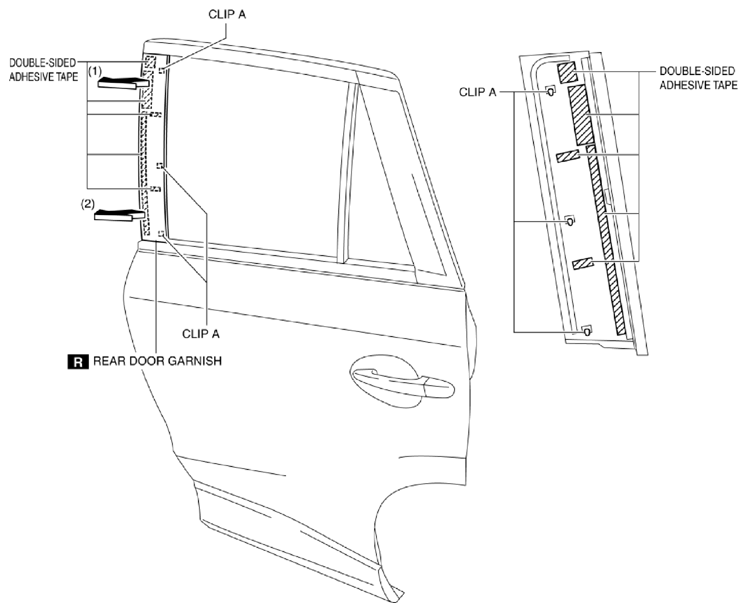

- Using a tape-wrapped fastener remover, remove clips A in the direction of arrow (1), (2) shown in the figure.
- Remove the double-sided adhesive tape in the position shown in the figure using the utility knife, remove the rear door garnish from the rear door sash.
- Install in the reverse order of removal.
