Pedal Full Stroke Inspection
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Perform "PEDAL INSPECTION PREPARATION ". (See PEDAL INSPECTION PREPARATION .)

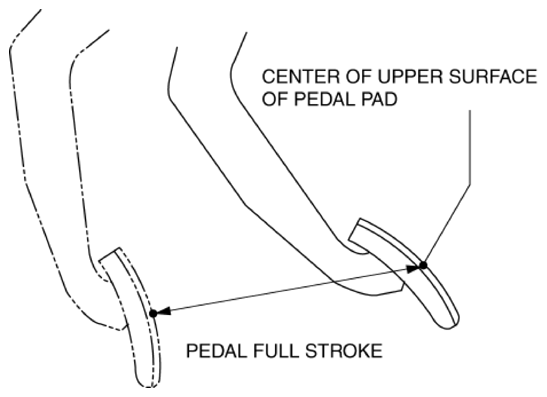

- Depress the clutch pedal from the released condition to the full depression position, and measure the pedal full stroke as shown in the figure.
Pedal full stroke (reference value)
- 146 mm {5.75 in}
- If it is not the specification, replace the clutch pedal. (See CLUTCH PEDAL REMOVAL/INSTALLATION .)
