On-Board Diagnostic Wiring Diagram [Start Stop Unit]

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

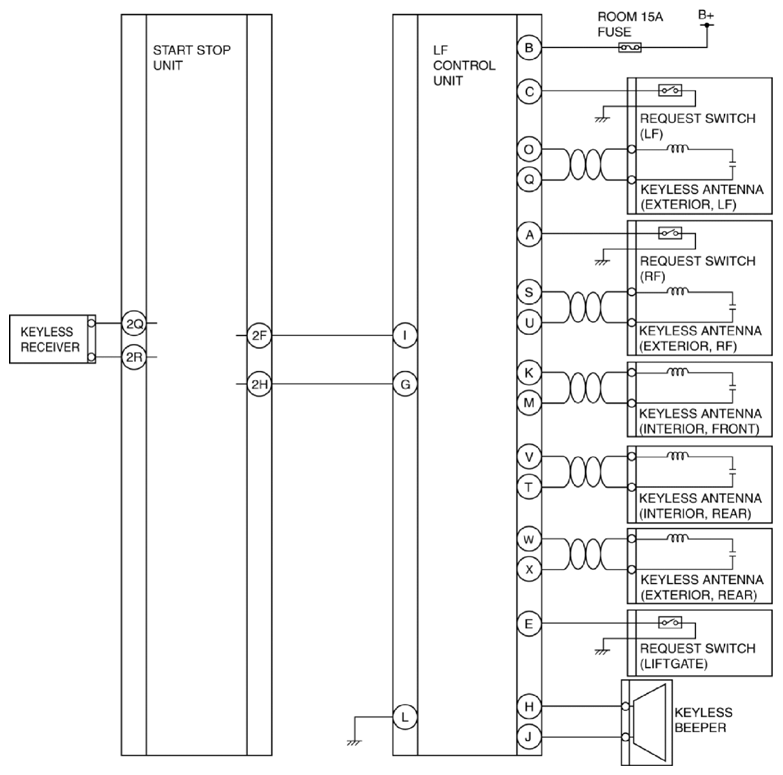

Fig 1: Start Stop Unit Wiring Diagram (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

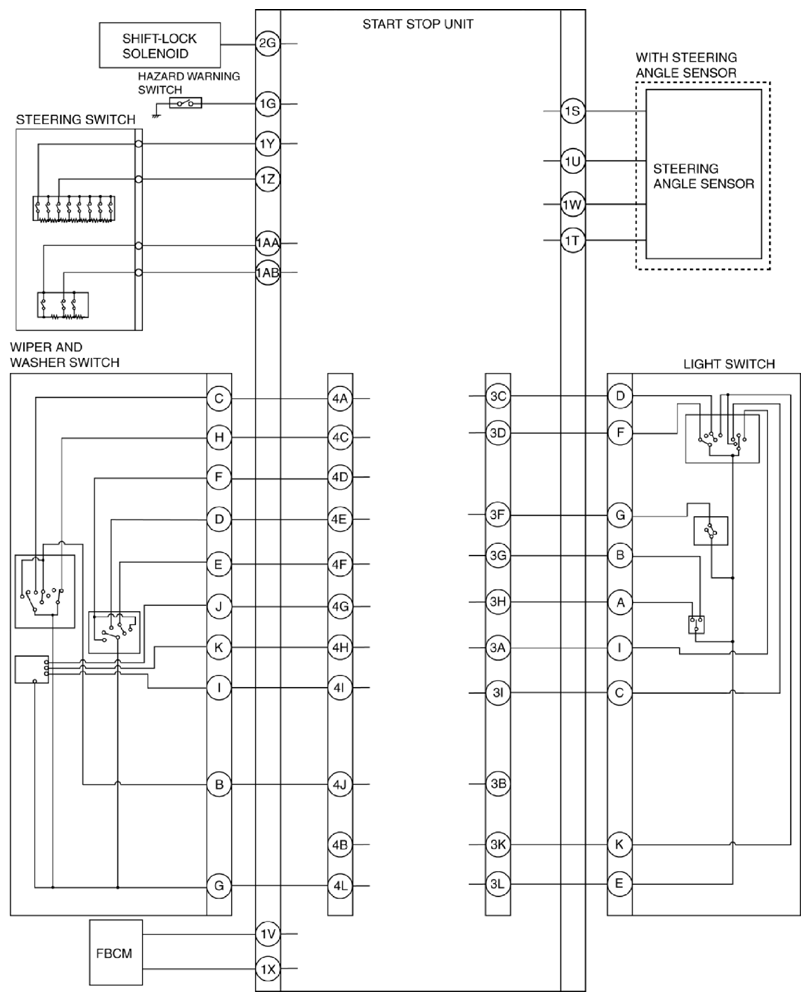

Fig 2: Start Stop Unit Wiring Diagram (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

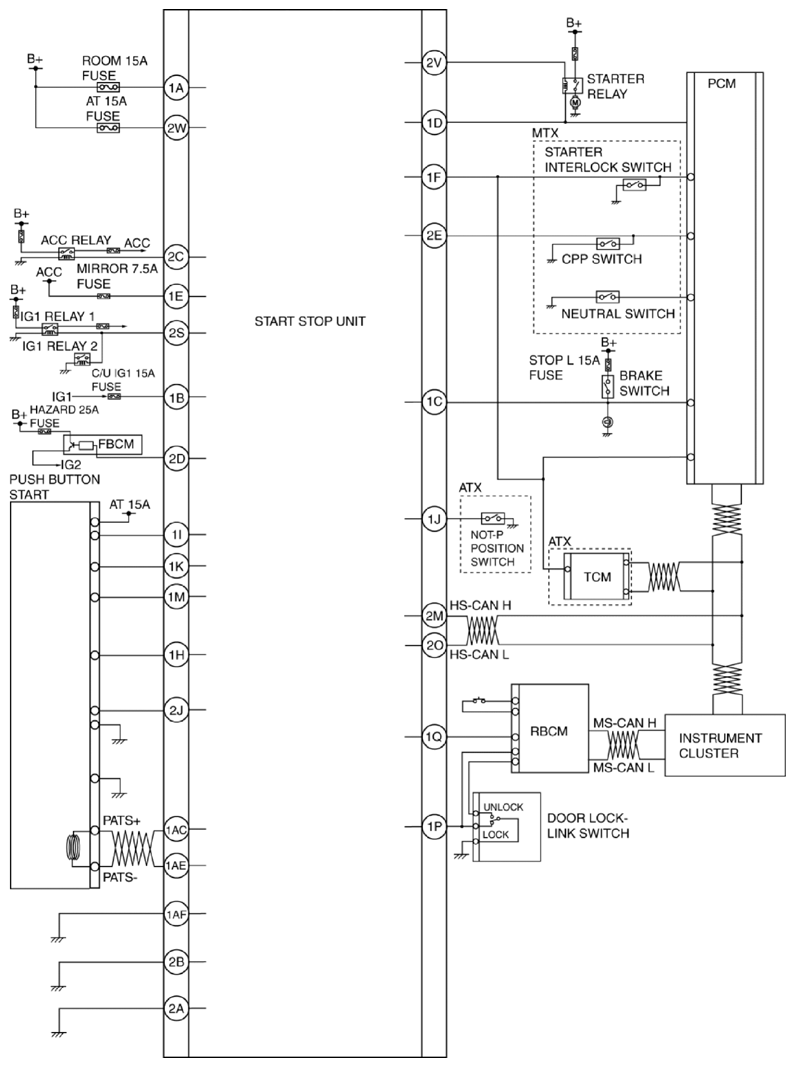

Fig 3: Start Stop Unit Wiring Diagram (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
