DTC U3004-16: Acc Relay Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

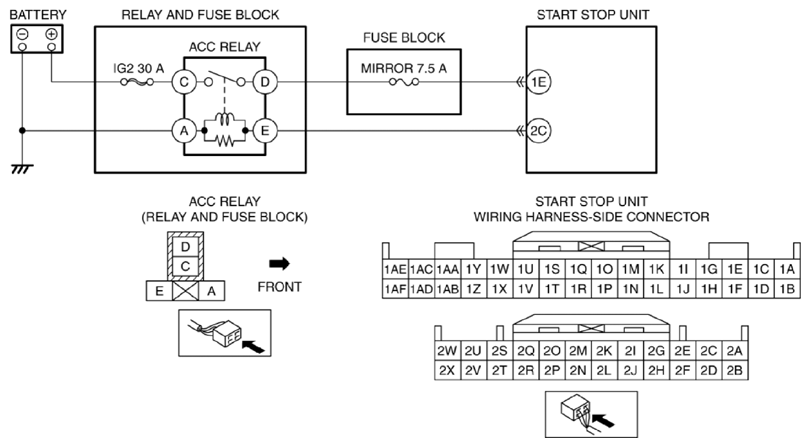

| System malfunction location |
ACC relay circuit malfunction |
| Detection condition |
- With the ignition switched to ACC or ON (engine off or on), the start stop unit detects ACC monitor voltage of less than 2.5 V
for 1 s or more
.
|
| Fail-safe |
- |
| Possible cause |
- ACC relay malfunction
- ACC relay power supply circuit malfunction
- Short to ground in wiring harness between IG2 30 A fuse and ACC relay terminal C
- IG2 30 A fuse malfunction
- Open circuit in wiring harness between battery positive terminal and ACC relay terminal C
- Start stop unit connector or terminal malfunction
- MIRROR 7.5 A fuse malfunction
- Short to ground in wiring harness between ACC relay terminal D and start stop unit terminal 1E
- Open circuit in wiring harness between ACC relay terminal D and start stop unit terminal 1E
- Start stop unit malfunction
|
|
|
