DTC P1708-24: Starter Interlock Switch Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
Starter interlock switch circuit malfunction |
| Detection condition |
- The start stop unit detects an open circuit in the starter interlock switch circuit for 1 s or more
for a continuous 5 times
with the ignition switched ON (engine off or on).
|
| Fail-safe |
- Change to the back-up mode.
|
| Possible cause |
- Starter interlock switch connector or terminal malfunction

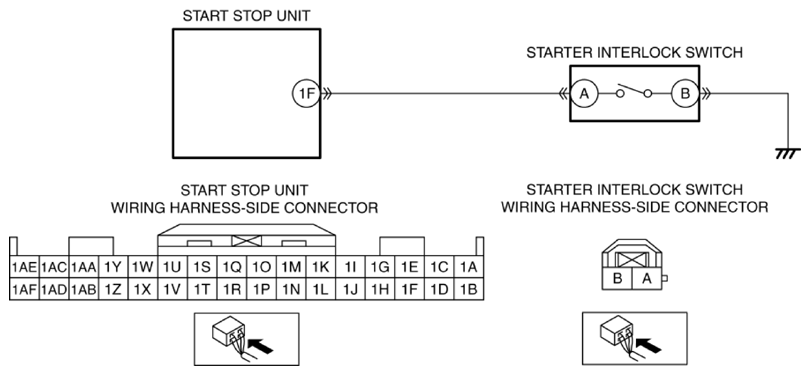

- Open circuit in wiring harness between starter interlock switch terminal B and body ground
- Starter interlock switch malfunction
- Start stop unit connector or terminal malfunction
- Open circuit in wiring harness between start stop unit terminal 1F and starter interlock switch terminal A
- Start stop unit malfunction
|
|
|
