DTC P0930-71: Shift-Lock Solenoid Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

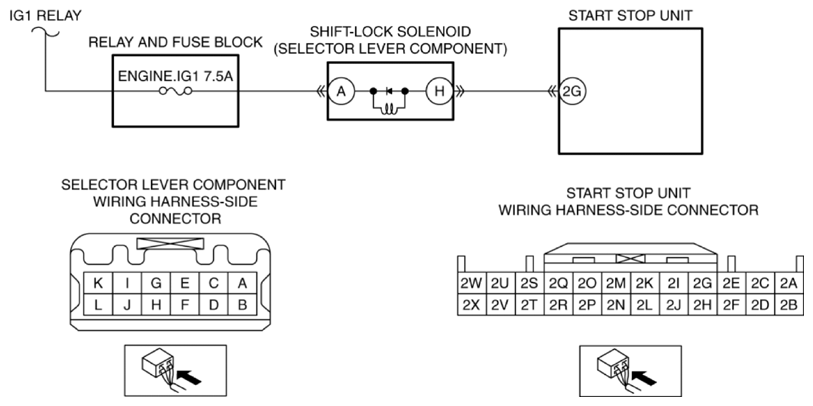

| System malfunction location |
Shift-lock solenoid circuit malfunction |
| Detection condition |
- The start stop unit detects shift-lock solenoid is stuck on for 30 s or more
with the ignition switched ON (engine off or on).
|
| Fail-safe |
- Inhibits the shift lock control.
|
| Possible cause |
- Selector lever component connector or terminal malfunction
- Shift-lock solenoid power supply circuit malfunction
- Short to ground in wiring harness between ENGINE.IG1 7.5 A fuse and selector lever component terminal A
- ENGINE.IG1 7.5 A fuse malfunction
- Open circuit in wiring harness between IG1 relay and selector lever component terminal A
- Start stop unit connector or terminal malfunction
- Short to ground in the wiring harness between selector lever component terminal H and start stop unit terminal 2G
- Open circuit in the wiring harness between selector lever component terminal H and start stop unit terminal 2G
- Shift-lock solenoid malfunction
- Start stop unit malfunction
|
|
|
