DTC P0615-13: Starter Relay Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
Starter relay circuit malfunction |
| Detection condition |
- The start stop unit detects an open circuit in the starter relay circuit for 1 s or more
with the ignition switched off.
|
| Fail-safe |
- |
| Possible cause |
- Disconnect the start stop unit with the battery cables connected.
- Starter relay malfunction
- Start stop unit connector or terminal malfunction

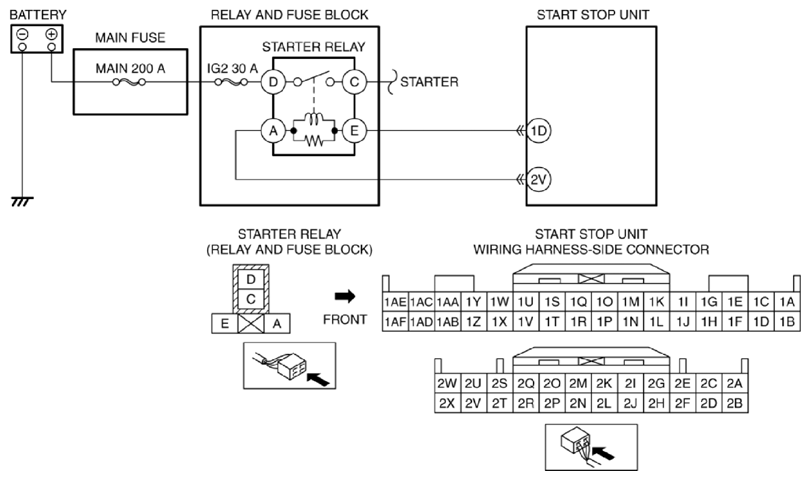

- Open circuit in wiring harness between the following terminals:
- Starter relay terminal A and start stop unit terminal 2V
- Starter relay terminal E and start stop unit terminal 1D
- Start stop unit malfunction
|
|
|
