DTC P0615-11: Starter Relay Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
Starter relay circuit malfunction |
| Detection condition |
- The start stop unit detects starter relay monitor circuit voltage of less than 2.2 V
for 1 s or more
with the ignition switched off.
|
| Fail-safe |
- |
| Possible cause |
- DTCs are stored in the PCM
- Starter relay malfunction
- Start stop unit connector or terminal malfunction
- PCM connector malfunction

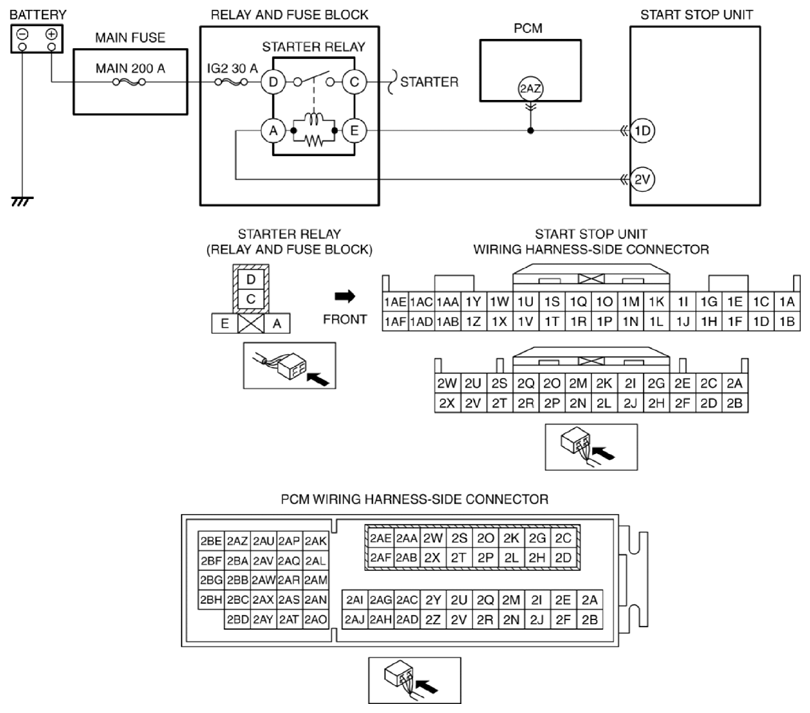

- Short to ground in wiring harness between the following terminals:
- Starter relay terminal E-Start stop unit terminal 1D
- PCM terminal 2AZ-Start stop unit terminal 1D
- Starter relay terminal A-Start stop unit terminal 2V
- Start stop unit malfunction
|
|
|
