DTC C0053-14: Steering Angle Sensor B Signal Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
Steering angle sensor B signal circuit malfunction |
| Detection condition |
- The start stop unit detects an open circuit or a short to ground in steering angle sensor B signal circuit.
|
| Fail-safe |
- |
| Possible cause |
- Steering angle sensor connector or terminal malfunction
- Start stop unit connector or terminal malfunction

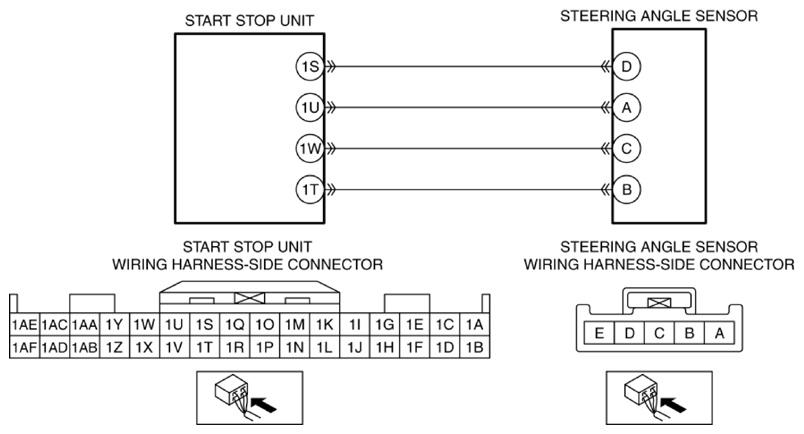

- Short to ground in wiring harness between start stop unit terminal 1W and steering angle sensor terminal C
- Open circuit in wiring harness between start stop unit terminal 1W and steering angle sensor terminal C
- Steering angle sensor malfunction
- Start stop unit malfunction
|
|
|
